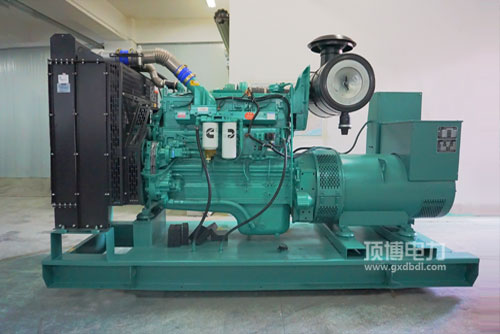

224-310KW广西顶博发电机组制造:康明斯发电用发动机可靠性高：高强度合金铸造缸体、可锻铸铁(FCD) 活塞，刚性更好，降低振动和噪声，提高了发动机适应更高的爆发压力。

High reliability: intensified alloy casting cylinder and Ferrous Cast Ductile (FCD) piston provide engine a better rigidity performance and lower vibration & noise, and also make the engine adapt to higher explosion pressure.

康明斯风能发电用起行为柴油效率性性好: 优秀的柴油调控的设计，特有的STC、ESTC 分级制度调控的设计，独特的设计的连杆顶端烧室，高压低压喷涌柴油，做好吸雾，烧做好。

Good fuel economy: Advanced fuel control system, unique STC, ESTC step control system, specilly-designed piston topchamber and high pressure fuel injection lead to an excellent fuel consumption rate and emission performance of engine.

康明斯发电厂用发起机瞬态能优质: 高品质的发起机总体设计的概念，能默契配合康明斯特有的EFC体统，把握准确度更高，异常事件快。

Excellent transient performance: perfect overall engine design with unique Cummins EFC system, high precision on control and quick response time.

康明斯发电量用发起机升工作功率高: 整体上设计制作紧促.形壮装置合理安排，行驶稳定。High lift power: Integrated and compact design, reasonable layout and smooth operation.

电喷外形 QSNT. QSK19. QSK38. QSK50提供我国的非公路第二阶段性及南美Tier2. Tier 3排出法律规范标准要求。

Electric fuel injection engines (QSNT,QSK19,QSK38,QSK50) meet the Tier3 emission regulations for China non-road vehicles and Tier2 & Tier3 emission regulations of North America.

零备品备件必须得要性好， 热车机使用及运营护肤生活便利，料工费低。Good availbility of spare parts, smooth engine operation, convenient engine maintenance and low cost.

发动机规格Engine Specifications

工作效率位置 Power Range   224-310KW结构类型 Type   直列/六缸/四冲程/四气门  In-ine/6-Cylinder/4-Stroke/4-Valve缸径x冲程 BoreX Stroke  125X 147mm排量 Displacement   11L外型尽寸 Dimension  长X宽X高(LXWX H) 1360 x 833X 1068 mm净的品质 Dry Weight   940kg

224-310KW康明斯发电机组用发起机的特征：质量分数小， 降低比低， 格珊气氛进行加热，方便开机启动，手机移动车截电源开关的第一选择。Compact size, high compression ratio, gile heated by air, easy for start-up, the first option of mobile vehicle power supply.

推荐机型Engine Models Recommended

汽车发驱动力材质	长用耗油率(kW)Prime Power	后备电源额定功率kW)Standby Power
MTA11-G2	224	246
MTAA11-G3	282	310
